Recessed lighting can create clean ceiling lines, provide focused task lighting, and highlight architectural features. However, “low voltage” does not describe every recessed LED product, and using the wrong installation method can create compatibility, overheating, or code-compliance problems.
The first step is therefore not cutting the ceiling. It is identifying the exact system architecture, reading its wiring diagram, and confirming that the housing, module, driver, cable, controls, and environmental ratings are designed to work together.
The video is a visual supplement only. Its wiring method may not apply to your product, so compare each step with the instructions supplied with the complete lighting system.
First, Identify the Type of Recessed Lighting
Low-voltage recessed lighting normally uses a transformer or LED driver between the household supply and the LED modules. Twelve- and 24-volt systems are common, but they are not universal.
Under the US National Electrical Code framework, Article 411 addresses lighting systems operating at no more than 30 volts AC or 60 volts DC, with lower limits where wet contact is likely. It also addresses isolating power supplies and components identified for the application. Local jurisdictions may enforce different NEC editions and amendments, so confirm the rules that apply where the project is located.
| System type | How power is commonly supplied | Important distinction |
|---|---|---|
| Remote-power-supply low-voltage system | One or more remote drivers receive line voltage and supply low voltage to compatible luminaires. | This is the main system covered by the installation sequence below. Output voltage, current, topology, cable, and fixture count must follow the manufacturer’s diagram. |
| Canless LED downlight with a separate junction/driver box | Many North American products receive 120-volt branch-circuit power directly at each supplied box. | A product of this type is not installed as a shared 12- or 24-volt transformer system, even if a short low-voltage lead connects its box to the light. |
| Recessed housing with replaceable or integrated LED module | The driver may be integrated into the module, housing, or another listed component. | The rating may depend on the approved housing, module, and trim combination rather than any single part. |
Do not assume that a driver output is Class 2 merely because its voltage is low. UL distinguishes Class 2, isolated, and direct or non-isolated LED-driver outputs. Product markings and instructions determine the permitted wiring method, enclosure requirements, and suitable cable.
Plan the Complete System Before Cutting
1. Confirm that every component is compatible
Start with the luminaire and driver documentation. Record the required output voltage, output current, maximum fixture count, minimum and maximum load, control method, connector type, polarity, cable limitations, and permitted distance between the driver and fixtures.
Constant-voltage and constant-current equipment are not interchangeable. Constant-voltage LED modules are often wired in parallel, but constant-current systems may use a different, manufacturer-specific arrangement. Never apply “connect everything in parallel” as a universal rule; the supplied wiring diagram controls.
2. Design the lighting layout
Mark each proposed opening and identify joists, ducts, pipes, existing cables, and other obstructions. A ceiling scanner can help with preliminary planning, but it cannot guarantee that a cavity is clear. Inspect from an attic or an approved exploratory opening where possible, and do not cut where concealed conditions remain uncertain.

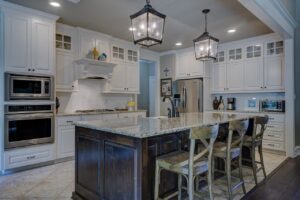

Fixture spacing should reflect ceiling height, beam angle, delivered lumens, work surfaces, and the desired balance between task and ambient light. In a kitchen, for example, locate task lights to illuminate counters without placing the user’s head between the light and work surface. Adjustable modules may be more appropriate for artwork, shelving, or angled ceilings.
3. Check insulation, moisture, air leakage, and fire ratings
- Insulation contact: Type IC equipment may contact insulation as permitted by its listing. Type Non-IC recessed luminaires generally require insulation to remain at least 3 inches away and not cover the luminaire. Check the rating of the complete approved assembly, including any required housing, module, and trim.
- Damp or wet locations: Suitability applies to the listed luminaire or assembly, not necessarily to the trim alone. Damp-rated products are intended for moisture or condensation without direct water exposure. Wet-rated equipment is needed where water can drip, splash, or flow against it. The correct bathroom or exterior rating depends on the exact mounting position.
- Thermal envelope: A recessed light below an attic or another unconditioned space can become an air-leakage path. In jurisdictions using the relevant 2021 IECC provision, qualifying recessed luminaires in the thermal envelope must be IC-rated, limited to 2.0 cfm of air leakage at 75 Pa, and sealed to the ceiling finish. Local adoption varies.
- Fire-rated ceilings: Cutting a fire-resistance-rated ceiling can reduce the assembly’s performance. Use luminaires tested as part of that assembly or an approved listed protection method. Consult the local authority or a qualified building professional before altering such a ceiling.
4. Size the driver and cable from published tables
Add the loads only in the manner specified by the manufacturer, then verify the permitted fixture count and both the minimum and maximum driver load. An arbitrary “headroom” percentage is not a substitute for the driver’s load table. Some products permit operation at rated output, while others require derating under specified conditions.
Cable size cannot safely be reduced to a general recommendation such as 14/2 or 16/2. Required conductors depend on output current, distance, acceptable voltage drop, terminal limits, temperature rating, output classification, installation environment, and whether the cable is approved for use inside walls or environmental-air spaces. Use the manufacturer’s distance-and-conductor table and a wiring method permitted by the locally adopted code.
5. Verify dimming compatibility
The driver, LED load, dimmer, control protocol, and load range must all be compatible. Electronic low-voltage, magnetic low-voltage, forward-phase, reverse-phase, 0–10V, and digital controls are not automatically interchangeable. An incompatible combination may cause flicker, buzzing, dropout, a restricted dimming range, or failure to start.
If the plan includes a smart dimmer, check both manufacturers’ compatibility information. Also confirm whether the control needs a neutral conductor and whether it meets the driver’s minimum and maximum load requirements.
Step-by-Step Installation Sequence
This sequence is intended for a listed remote-power-supply low-voltage system. If the product is a line-voltage canless downlight or another configuration, follow its own instructions instead.
Step 1: Check local requirements and assemble the system
Before purchasing or installing equipment, determine whether the work requires a permit, inspection, or licensed contractor. Requirements vary by jurisdiction and may also depend on whether the project extends an existing circuit, creates a new circuit, or only installs listed plug-connected equipment.
Keep the driver, luminaires, trims, connectors, controls, and required mounting hardware together as an approved system. Do not mix components solely because their connectors fit or their nominal voltages appear similar.
Step 2: Transfer the final layout to the ceiling
Use the manufacturer’s template to mark each opening. Recheck alignment from several viewpoints and verify clearance for the complete housing or module, not just the visible trim. Confirm that the proposed driver and junction-box locations will remain accessible as required by the product listing and adopted code.
Step 3: De-energize and verify the circuit
Work exposing line-voltage conductors should be performed by a qualified person. The correct disconnect should be opened, accidental re-energization prevented, and absence of voltage verified at the actual work location with an appropriately rated test instrument. A sound verification procedure includes confirming that the tester works on a known energized source before and after the absence-of-voltage test.
A non-contact detector can be a useful preliminary indicator, but it should not be treated as the only verification method where conductors will be exposed. Do not perform live measurements or make energized connections unless specifically qualified and equipped for that work.
Step 4: Cut and prepare the openings
Cut only after the cavity has been assessed and the exact cutout size confirmed. Protect the room from dust and support the ceiling finish to reduce chipping. Stop if the opening reveals unexpected wiring, plumbing, ductwork, structural members, or a fire-protection feature.
Step 5: Mount housings, supports, and the power supply
Install housings and supports in the orientation required by the manufacturer. Place the driver or transformer within its stated ambient-temperature range and observe all clearance, mounting, and insulation-contact instructions. “Accessible and ventilated” is not a universal placement rule; some listed products permit insulation contact or access through the luminaire opening, while others require different conditions.
Junction boxes must not be concealed behind permanent finishes where the listing or adopted code requires access. A listed canless driver/junction box may be designed for servicing through the luminaire opening, but that does not automatically permit the same treatment for an unrelated remote driver.
Step 6: Route the specified cable
Route cable using the wiring method, conductor size, support intervals, bend limits, and separation requirements stated in the instructions and local code. Keep the run within the manufacturer’s maximum distance. Protect cable where it passes through framing and do not place it where trim springs, housing edges, or future fasteners can damage it.
Step 7: Make connections according to the wiring diagram
Observe polarity where required and use only listed connectors that accept the conductor type and size. Follow the exact series, parallel, or other topology shown for the driver and modules. Keep line-voltage and low-voltage conductors separated or enclosed as required by the system’s output classification and installation instructions.
The line-voltage input to a remote driver remains a household-voltage connection even though the fixture side is low voltage. Have a qualified electrician complete this portion unless local rules and the product design clearly permit otherwise.
Step 8: Inspect before energizing
Check that conductors are fully seated, no copper is exposed beyond terminals, cable clamps are secure, boxes have their covers, and no wiring is pinched. Verify the driver settings, fixture count, polarity, dimmer model, and approved housing-module-trim combination. Do not energize equipment with exposed live parts.
Step 9: Restore power and test operation
Test all luminaires at full output and throughout the intended dimming range. Check for delayed start, dropout, flashing, visible brightness differences, buzzing, or unexpected shutdown. If the manufacturer provides a commissioning procedure, use it before installing the final trims.
Step 10: Install trims and finish the ceiling
After satisfactory testing, install the approved trims or modules and seal the ceiling interface where required for the building envelope. Do not add caulk, foam, gaskets, or insulation unless the product instructions permit the material and placement.
Common Problems and Safe Troubleshooting
Begin with de-energized visual checks, model numbers, and the manufacturer’s troubleshooting instructions. Shut the system down and seek qualified help if there is a burning smell, discoloration, repeated breaker operation, damaged insulation, excessive heat, or evidence of arcing.
| Symptom | Items to check |
|---|---|
| No lights operate | Correct circuit and control, driver input, minimum-load requirements, driver settings, and system-compatible connections. Line-voltage diagnosis belongs to a qualified person. |
| Only some lights operate | Fixture compatibility, polarity, connector seating, permitted fixture count, and the specified wiring topology. One failed module does not have a universally predictable effect on the others. |
| Flicker, buzzing, or poor dimming | Dimmer type, driver compatibility, minimum and maximum loads, control settings, loose connections, and manufacturer compatibility lists. |
| Lights at the end of a run are dimmer | Run length, conductor size, output current, connection quality, and voltage drop against the driver’s cable-distance table. |
| Lights cycle off and on | Driver load limits, ambient temperature, required clearances, insulation contact, and thermal-protection conditions. De-energize the system before inspection. |
Efficiency and Long-Term Performance
LED downlights can use substantially less energy and release less waste heat than comparable incandescent or halogen lighting, but low voltage alone does not create the savings. Compare delivered lumens and total system input power, including driver losses. ENERGY STAR’s current downlight criterion includes a minimum efficacy of 82 lumens per watt.
Any savings estimate should account for the old and new system wattage, operating hours, electricity rate, equipment cost, and expected maintenance. Choosing listed, compatible components and retaining access to serviceable drivers is more important than relying on unsupported payback assumptions.
Practical Takeaway
A successful recessed low-voltage lighting installation starts by identifying the exact system—not by assuming every LED downlight uses a central 12- or 24-volt transformer. Confirm the driver type, wiring topology, cable requirements, controls, environmental ratings, load limits, and access provisions before cutting the ceiling.
Layout and trim installation may be manageable for a careful homeowner, subject to product instructions and local rules. New circuits, exposed line-voltage conductors, uncertain wiring, fire-rated ceilings, crowded cavities, and questionable insulation clearances are appropriate reasons to involve a qualified or licensed electrician.
Sources and references
- NFPA materials addressing NEC Article 411 low-voltage lighting systems
- UL Guide Information for electrical equipment and LED-driver output classifications
- UL Guide Information for luminaires, IC ratings, and damp or wet locations
- Lutron: Controlling LEDs
- Lutron Application Note 487: Minimum and maximum LED loads
- OSHA electrical safety-related work-practice guidance
- 2021 IECC R402.4.5: Recessed lighting in the building thermal envelope
- 2021 IBC 714.5.2: Membrane penetrations in fire-resistance-rated assemblies
- ENERGY STAR: Downlight efficiency criteria
